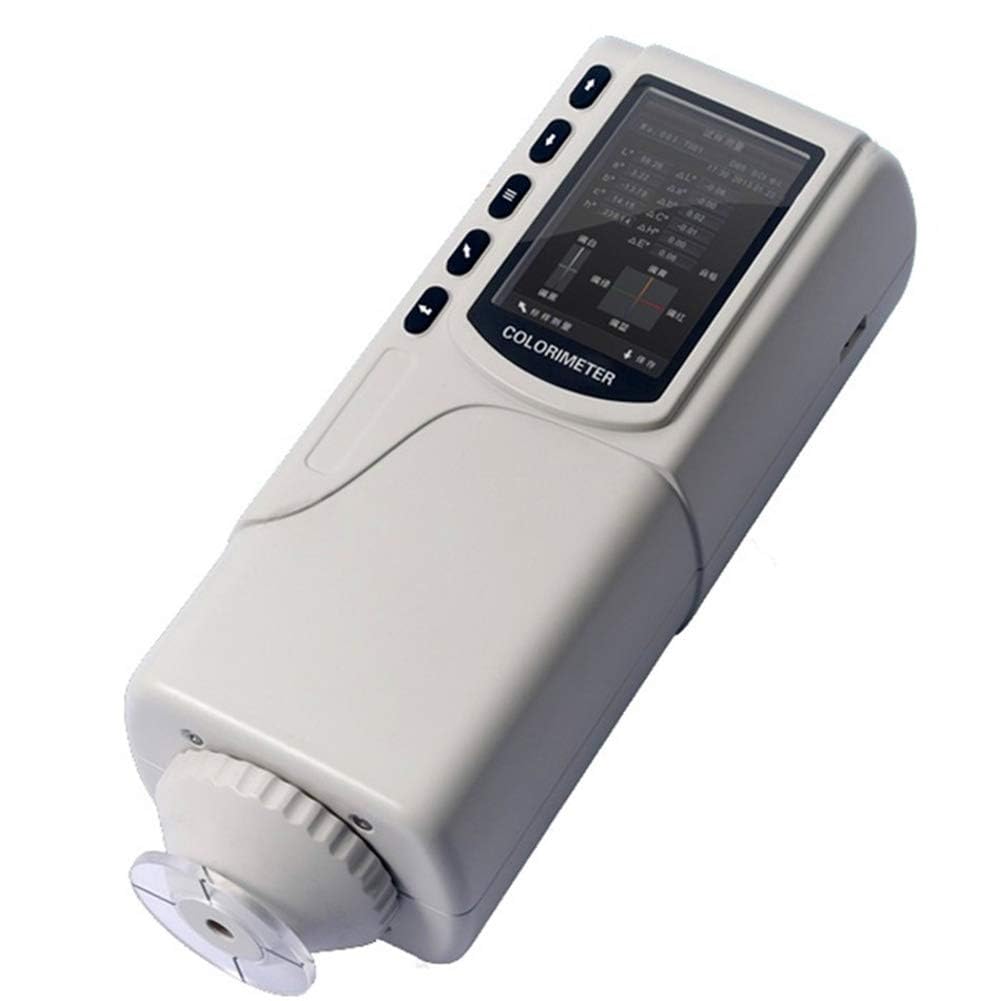

Double Locating Colorimeter Color Difference Meter Test Analyzer Switchable Apertures 4mm and 8mm with PC Software TFT Color Screen Display

Feature: ❤❤Switchable 8mm and 4mm measuring apertures, easy to measure concave surface. ❤❤Higher measurement stability and accuracy, Delta E ab<0.03. ❤❤More color spaces, various color indexes, extensive applicability. ❤❤Double locating: illuminating locating and cross locating. ❤❤Configured with high-capacity rechargeable Li-ion battery. ❤❤Built-in white plate parameters and physical white calibration board, easy to operate; ❤❤New integrating sphere optical path design, more stable measurement; ❤❤Measurement data can pass national metrology authentication. Technical Specifications: ❤❤Illuminating/Viewing Geometry: 8°/ d ❤❤Light Source: LED Light ❤❤Sensor: silicon photodiode array ❤❤Measuring aperture: Φ8mm flat aperture; Φ4mm tip aperture❤❤ ❤❤Color Space: CI E L AB, XYZ, LCh, CI E RGB, CI E LUV❤❤ ❤❤Color Difference Formula:ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00❤❤ ❤❤Other Chromaticity Data: WI ( E313, CI E, AATCC, Hunt er ), YI ( D1925, 313), Color Fastness, * Staining Fastness, J PC79, BFD( 1. 5: 1), FMCI I ❤❤Observer: CI E 10° ❤❤Illuminant: D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 ❤❤Display Data: Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset ❤❤Measuring Time: 0. 4s ❤❤Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s) ❤❤Errors between each instrument: within Delta E*ab 0.2 ❤❤Dimension: 205*67*80mm, Weight: 500g ❤❤Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh ❤❤Lamp Life: 5 years, more than 1.6 million measurements ❤❤Screen: TFT 2.8 inch（16: 9） ❤❤Interface: USB/ RS- 232 ❤❤Storage: 100 Standards, 20000 Samples ❤❤PC software: CQCS3 software ❤❤Optional accessory: miniature thermal printer, powder test box

• ❤❤(1)This colorimeter is standardly configured with 2 kinds of measuring apertures, switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
• ❤❤(2)Double locating: illuminating locating and cross locating,which can solve the problem of measuring small spots very well.
• ❤❤(3)Repetitive error is less than 0.03ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.
• ❤❤(4)Multiple light source modes, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make it can excellently fulfill all kinds of requirements for color measurements in different industries.
• ❤❤(5)Application Industry :This spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.
